IP PBX800 is a commercial level system with complete
Synchronous calls, suitable for small and medium-sized businesses
Organizations with 12 to 300 users.
● Maximum SIP license for one device: 300
● Maximum SIP box license for one device: 100
● Maximum analog ports: 4FXO+12FXS
● Network interface: 4 Gigabit Ethernet ports
Contact us
Description
Usage scenario
The IP PBX IP PBX 800 telephone system is specially designed to meet the demand of small and medium enterprises. This model supports up to 300 subscribers and full synchronous calls. It also offers many advanced features such as IVR, voicemail, and conferencing as well as all the traditional PBX functions such as call hanging, call transfer, call receiving, and call forwarding. With IP PBX 800, you can save communication costs, increase productivity and enhance collaboration efficiency at dramatically high rates.
--Industrial-grade CPU configuration--
--Quality of service with both hardware and software--
Quality of service with both hardware and software, adoption of advanced and sophisticated technology,
With a very weak network, priority is given to ensuring sound quality.
--Design multiple types of interfaces, strong compatibility--
--Built-in SBC function, comprehensive protection--
--The core of the program is based on the LINUX system--
---Detailed product parameters---
Technical indicator
Main processor: high-performance ARM CPU
Memory: 4 GB
Flash: 4 GB

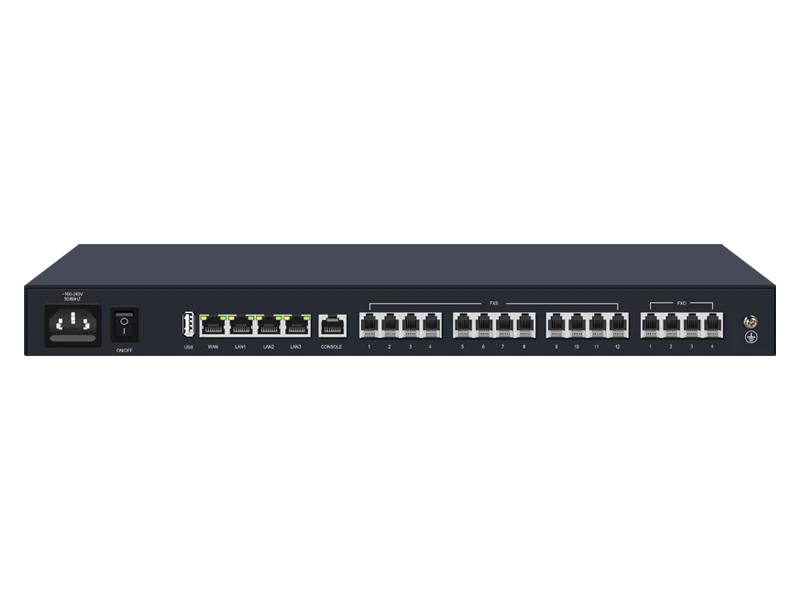

Network interface: 1 WAN, 3 LAN, RJ45 interface, 10/100/1000M Ethernet adaptive
USB Interface: 1 USB2.0, supports FullSpeed
FXS interface: 12, RJ11 interface
FXO Interface: 4, RJ11 Interface
Weight and size: Net weight: ≤2 kg Shape: 1 unit; Dimensions (width×depth×height): 430x180x44 mm
Power and power supply: The rated voltage range of the AC input is 100V AC.~240V AC; 50/60Hz; Maximum power 25W
Environmental requirements: working environment temperature 0℃~40℃, relative humidity of the environment 5%~90%
No performance degradation at 3000 meters above sea level, atmospheric pressure 86 kPa~106 kPa dust resistant ratio
